Registration
The registration layer creates the pass.

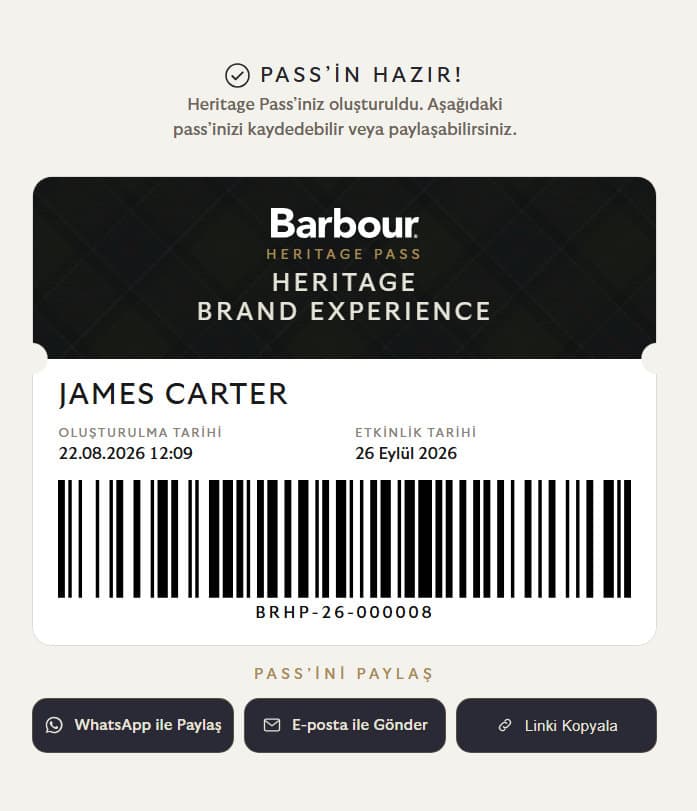

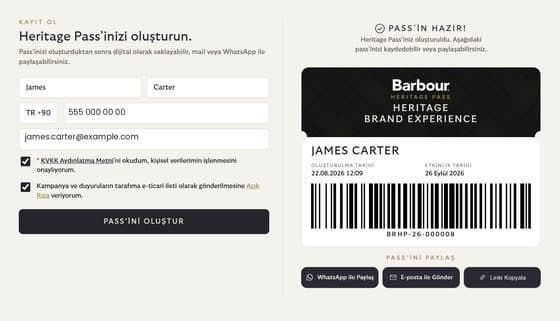

Visitors register online and receive a digital pass with a unique number, secure token URL and CODE128 barcode.
RegistrationHeritage Pass
IOC Labs / Solution 02
Heritage
Pass
A digital pass and event operations platform built to manage registration, verification, consent and live event operations from a single controlled system.
Built for Barbour Türkiye — Tersane İstanbul Heritage Store opening.
Built — live · Event 26 Sept 2026
Heritage Pass / ProductLive system
What it is
Not just a
digital ticket.
Heritage Pass is an end-to-end event infrastructure system. It connects visitor registration, pass issuance, capacity control, staff operations, two-stage redemption, consent collection and CRM transfer. It was built for a fixed-date live event where every transaction had to be reliable, traceable and controlled.
1,500Maximum passes
2-stageAtomic redemption
3-wayConsent flow
TürkiyeHosting (KVKK)
CRMTicimax integration
The experience
One pass.
Multiple controlled
operations.
From registration to redemption, every stage has a defined state. A pass moves through a controlled lifecycle that prevents duplicate use and keeps staff actions within their assigned roles.
01
Register
Visitor registration creates a unique pass and secure URL.
02
Verify
Staff scan and validate the pass before an event action.
03
Wheel
Top Wheel redemption is single-use and atomic.
04
Gift
Gift delivery unlocks only after the wheel is completed.
05
Audit

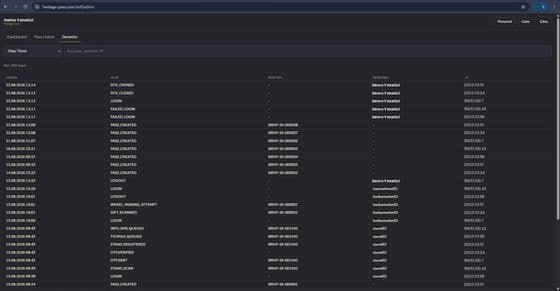

Actions, staff activity and operational states remain traceable.
On-site registration
At the event stand, printed passes are linked to visitors on the spot. Consent is collected by SMS one-time code and stored with the record. Numbers already on the client’s permission list skip the code; numbers on the exclusion list receive a pass but never enter the CRM queue.
Product in use
The system
behind the pass.

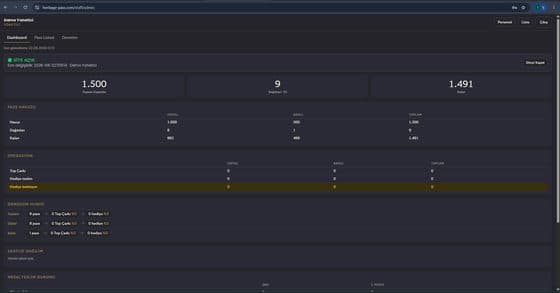

Explore the actual product interface. Select a screen to see the product area and the role it plays in the event operation.

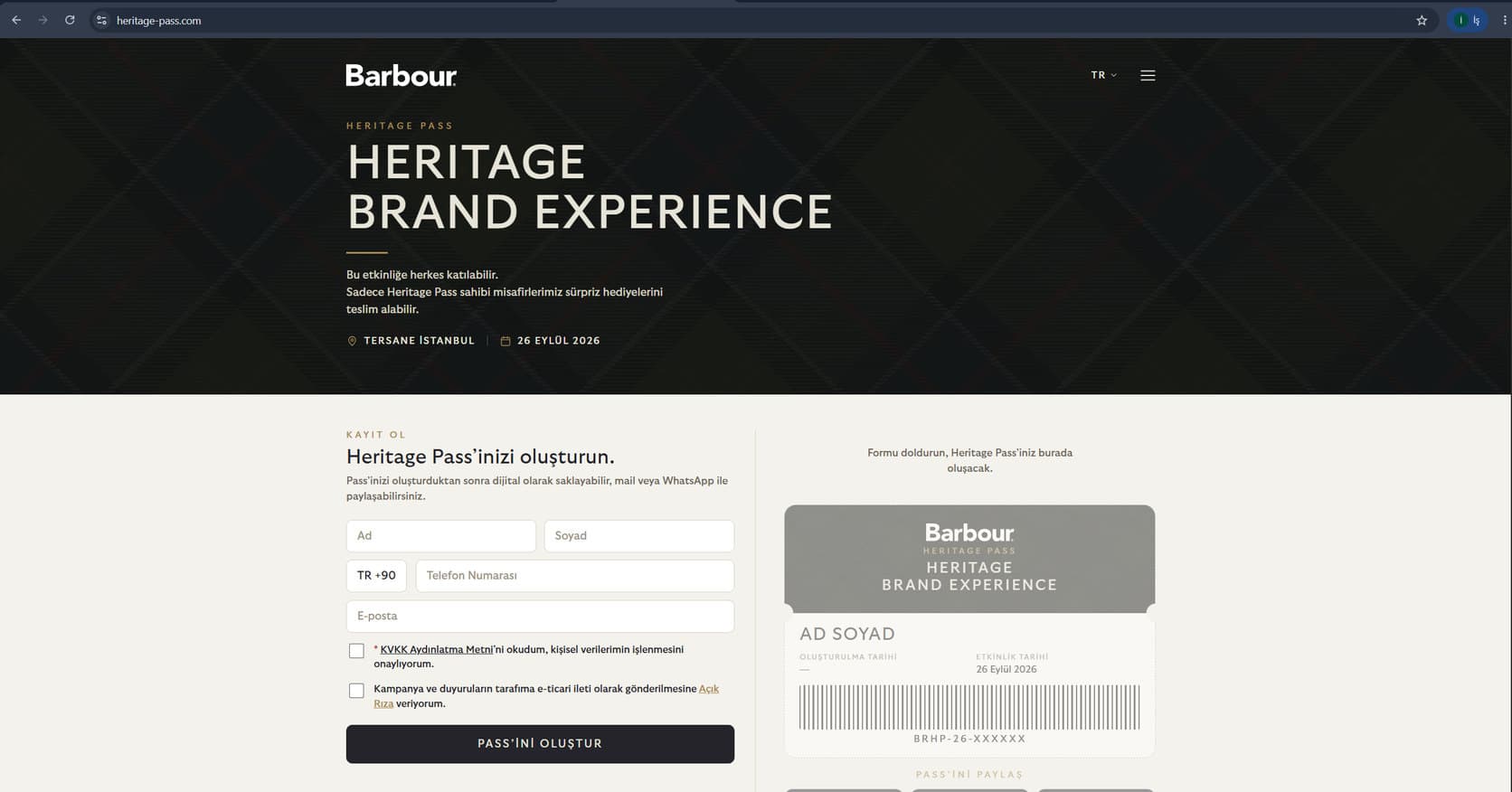

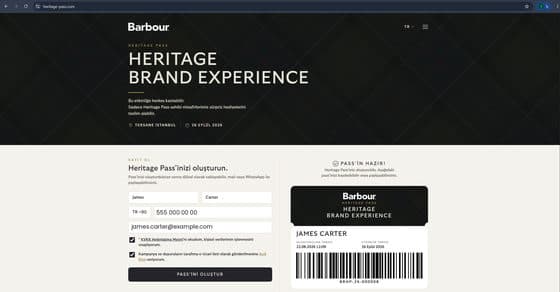

Registration
System design
A controlled
event layer.
The interface is only the visible layer. Underneath it are the pass lifecycle, capacity rules, atomic transactions, staff permissions, notification services and CRM queue.
Visitor Registration
Digital / Printed Passes
OTP & Consent Flow
Staff Operations
HP
Heritage Pass
Core
Capacity & Duplicate Control
Atomic Redemption
Notifications
Ticimax CRM Queue
Technology
Built for a
live operation.
The system was developed as a production application with database-backed state, asynchronous integrations and hardened infrastructure.
Next.jsApplication
PostgreSQLData layer
Docker ComposeInfrastructure
pg-bossQueue
NetgsmSMS
ResendEmail
Let's EncryptTLS
ufw + fail2banHardening
Ticimax SOAPCRM integration
Türkiye hostingNatro XCloud
IOC Labs / Heritage Pass
Built for the
real world.
Heritage Pass was completed for a fixed-date retail event, with a hard capacity limit, live staff operations, customer consent requirements and a production CRM integration. The result is a reusable foundation for controlled digital event experiences.
